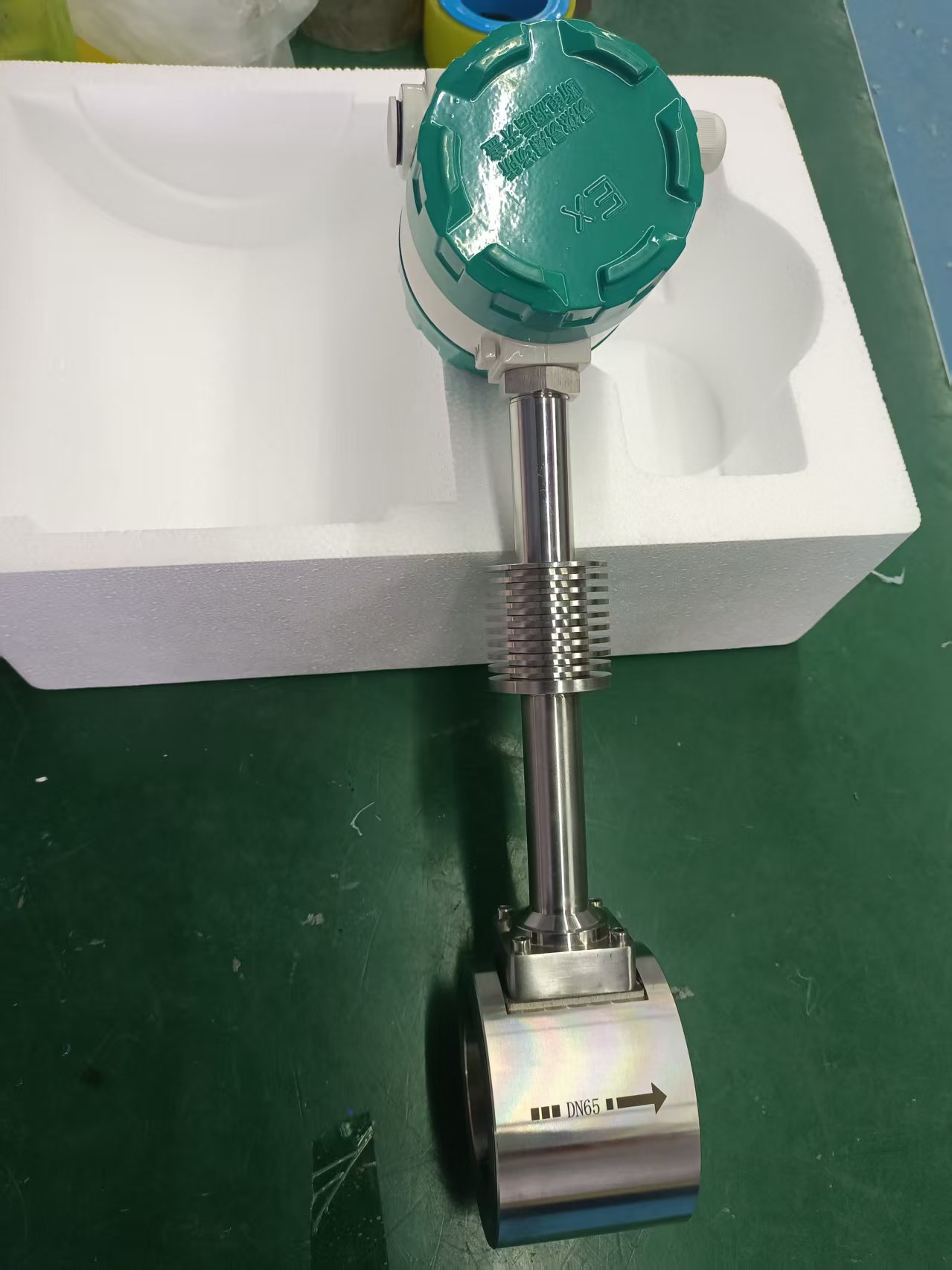

A vortex flow meter is a flow measurement instrument manufactured based on the Kármán vortex street principle. It is widely used for measuring the flow of medium fluids in industrial pipelines. Some vortex flow meters are equipped with heat sinks, primarily to mitigate the impact of high-temperature environments on the meter’s performance. Below is relevant information regarding vortex flow meters equipped with heat sinks:
Reasons for Equipping Heat Sinks:
Temperature Resistance Limit of Sensors: Common piezoelectric ceramic sensors are generally rated for temperatures ≤200°C. If the medium temperature exceeds this limit, it may cause signal drift or sensor damage. Electronic components, such as amplifiers, are also prone to accelerated aging and reduced stability if operated continuously at high temperatures.
Mechanical Thermal Deformation: At elevated temperatures, metal components like the vortex shedder and the meter body may undergo thermal expansion, altering their geometric dimensions and affecting measurement accuracy. Sealing materials, such as gaskets and O-rings, can also degrade or fail at high temperatures, potentially leading to leaks.
Changes in Medium Properties: The density of gases decreases at high temperatures, which can affect the strength of the vortex signal and lead to inaccuracies in low-flow velocity measurements.
Heat Sink Design and Materials
Material Selection: Materials with good thermal conductivity, such as aluminum alloy, are typically used. These materials excel at rapidly transferring heat to the surrounding air.
Structural Design: Common heat sink structures include plate fin and extruded fin types. To increase the surface area and improve heat dissipation efficiency, the number and density of fins are often increased. Additionally, features like grooves or slots may be incorporated into the fins to further enhance the contact area with the air.
Methods of Heat Sink Installation
Close Integration with the Flow Meter: To ensure heat is transferred quickly and effectively to the heat sink surface, thermal interface materials like thermal grease or thermal adhesive are often used to fill any gaps between the flow meter and the heat sink, thereby improving thermal conduction efficiency. For example, some externally mounted heat sink designs feature a split construction. This assembly is attached via screws to a bracket, with the heat sink’s sleeve and fins radially split into two halves that clamp securely onto the bracket, achieving a tight connection.
Air-Cooled Auxiliary Heat Dissipation: The heat sinks on some vortex flow meters may be used in conjunction with forced air cooling systems, such as the installation of cooling fans, to further enhance heat dissipation. The edges of the fan’s outlet might be framed and equipped with clamps that snap onto the heat sink, creating a quick-release structure for easy assembly, disassembly, and maintenance.
