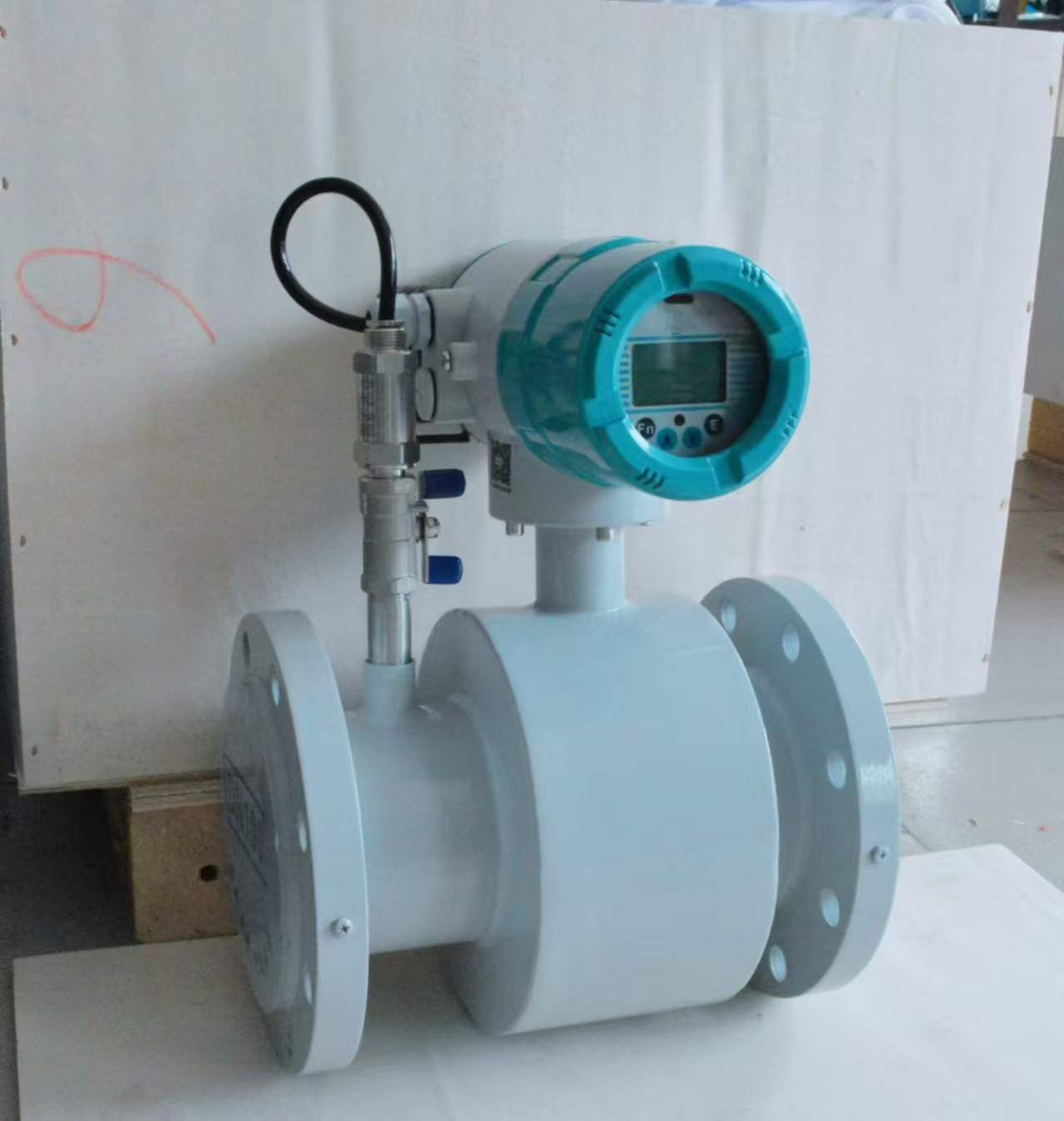

Flow & Pressure Integral Flow Meter
Official Product Introduction The L-magBC Series (1-Channel Pressure V100) electromagnetic flowmeter converter is engineered for integrated industrial fluid flow and pressure measurement. It integrates flow monitoring, pressure acquisition, signal output, digital communication, and alarm protection in one unit, suitable for various pipe diameters and fluid media with high stability, easy installation, and simple operation. Core Functions Integrated Flow & Pressure Measurement Supports 1-channel 2-wire pressure transmitter connection, simultaneously acquiring flow and inlet pressure data for dual-parameter monitoring. Intelligent Signal Processing Features empty pipe detection, spike suppression, abnormal flow inhibition, and low-flow cutoff to effectively filter interference and ensure stable measurement. Abundant Output Interfaces 4~20mA analog current, pulse/frequency output, relay alarm output, and RS485 (MODBUS-RTU) communication. User-Friendly Operation Dual control via panel keypad and infrared remote controller; multi-level password protection for safe and intuitive parameter setup. Comprehensive Alarm Protection Full-scenario alarms including empty pipe, excitation fault, flow upper/lower limit, pressure upper/lower limit, reverse flow, and low-flow cutoff. Performance Specifications Power Supply: 85~250VAC / 20~36VDC, power consumption < 20W Flow Measurement: Velocity 0.1~15m/s, resolution 0.5mm/s Accuracy: Up to ±0.25% FS, compliant with JJG 1033-2007 Analog Output: 4~20mA, load 0~750Ω Pulse/Frequency: 0~5000Hz, photoelectric isolation > 1000VDC Communication: RS485-MODBUS RTU, baud rate 300~38400bps Operating...
