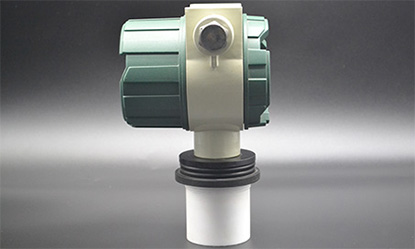

Anti-explosion ultrasonic level meter

The Ultrasonic level meter is instrument of measured material level, which is non-contact, high reliability, cost-effective, easy to install and maintain. Integrated anti‑explosion ultrasonic level meter delivers non‑contact level measurement, with measuring range up to 50 m, accuracy 0.25‑0.5%F.S. It supports 4‑20 mA, RS485, RS232 and relay alarm outputs. Equipped with LCD display and echo‑gram fault diagnosis, the anti‑acid, anti‑aging explosion‑proof housing fits hazardous‑zone scenarios. Widely used in petrochemical, sewage‑treatment, mining, food & winery grain‑silo measurement. PDF datasheet is available for download.

Email: info@felixmeter.com

Send Email Whatsapp Now

Introduction Specification Feature Application Send Message Related Products

Introduction

The Ultrasonic level meter is instrument of measured material level, which is non-contact, high reliability, cost-effective, easy to install and maintain.It meets the requirementsofmateriallevel withoutthe contactand owns the independent property rights with development for many years by ourcompany.

Specification

Model	Integrative Type , Anti-explosion
Level Range	5M, 10M, 12M.15M, 20M,30M, 50M.
Analog Output Communication	4~20mA/750Ω load resistance (2 wire) 4~20mA/250Ω load resistance (4 wire) RS485 (standard), RS232
Relay/Alarm Output	AC 250V/ 8A;DC 30V/ 5A;
Blind Zone	0.2-0.6m
Working Pressure	2 Bar (Explosion proof is 5 bar)
Resolution	3mm or 0.1%F.S (Max of them)
Accuracy	0.25%-0.5%F.S
Environment Temperature	Meter: -20~+60℃ Sensor: -20~+80℃

Feature

Wide range, the max. range can reach 50m
Humanized design, can be shown distance and level at the same time
By echo gram can determine the cause of the problem
High protection class
Explosion proof type
Various output types
LCD display
Cover with composite decking Explosion proof ,Anti-acid ,
Anti-acid base ,Anti-aging

Application:

Sedimentation tank
Sewage treatment
Food industry(Winery, Granary etc)
Electricity mining industry
Petrochemical industry
