Modular Integrated Ultrasonic Flow Meter
It is mainly used in the measurement and control of water (tap water, pure water, and ultrapure water). Due to the continuous expansion of application industries, it is also suitable for various acids, alkalis, organic liquids, chemical solvents, alcohols, beverages, etc.
Applicable fluids:
◆ Water
◆ Oil
◆ Chemicals
Introduction

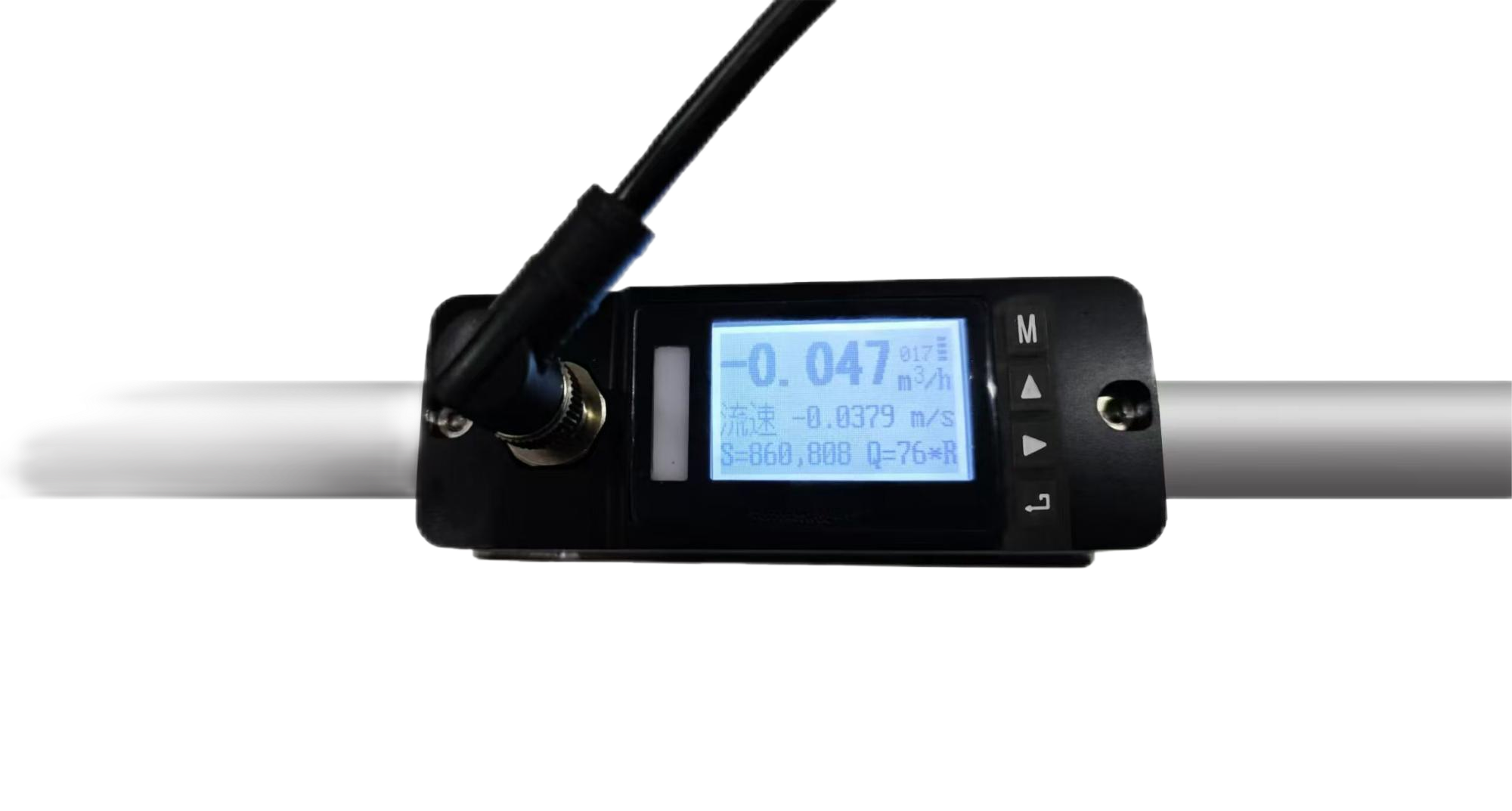

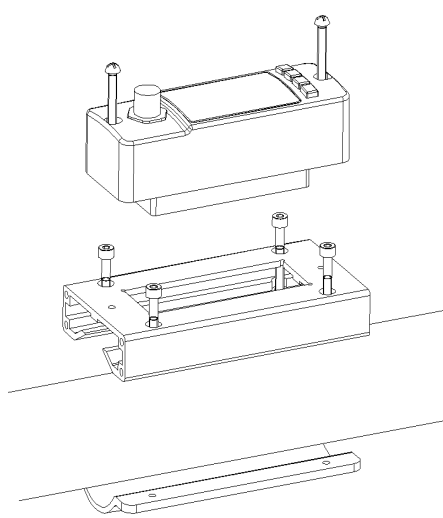

The product is a clamp-on ultrasonic flow meter with an integrated design, which is featured by small size, easy installation and operation, etc., and is suitable for the liquid media flow monitoring of a variety of small-diameter pipes.
Specification
| Items | Specifications |
| Housing material | Aluminium alloy, plastic |
| Mounting screw | Stainless steel |
| Protection grade | IP54 |
| Flow velocity range | 0.05-6m/s, > 0.2m/s to meet the accuracy |
| Calibration medium | Factory calibration medium: Water |
| Models | FXK-10, FXK-20, FXK-32, FXK-50 |
| Measurement range | FXK-10: outer diameter Ф13-18mm FXK-20: outer diameter Ф18-28mm FXK-32: outer diameter Ф28-44mm FXK-50: outer diameter Ф44-64mm |
| Pipe materials | Stainless steel, carbon steel, copper, PVC, PP, PVDF and other dense pipes |
| Measurement media | Water, alcohol, gasoline, chemical solvents and other liquids with fixed composition (free of solid particles and impurities) |
| Media temperature | Standard transducer -10°C - 65°C (unfrozen) / Split transducer -20°C - 160°C |
| Measurement accuracy | Tolerance < 2% |
| Response time | 1s - 5s |
| Power supply | 12-24VDC |
| Power consumption | 2W |
| Power supply/output interface | M12-Type A-6-core, 1 piece |
| Output | 4-20mA |
| Communication | RS485 Modbus |
| Display screen | 12864, LCD (black lettering on white background) |
| Keys | Light-touch mechanical keys, 4 pcs |
| Operating ambient temperature | -10°C - 60°C (unfrozen) |
| Storage temperature | -10°C- 60°C |
Feature
-
◆ The measuring medium does not need to be electrically conductive;
◆ There is no need to break pipes during the installation process, and there is no need to stop work and production. There is no moving part and no pressure loss;
◆ No professional training is required for installation personnel, and they can complete the installation according to the installation video or the installation step diagram;
◆ Aviation aluminum alloy, stainless steel clamp, suitable for a variety of supply control environments.
Application
Applicable Media (Common examples; if not listed, please contact the manufacturer for confirmation)
The product is suitable for the measurement of almost all single and clean liquids:
It is mainly used in the measurement and control of water (tap water, pure water, and ultrapure water). Due to the continuous expansion of application industries, it is also suitable for various acids, alkalis, organic liquids, chemical solvents, alcohols, beverages, etc.
Applicable fluids:
◆ Water
◆ Oil
◆ Chemicals
Pipe Materials
The product is suitable for the measurement of almost all pipes made of acoustic conductive materials, including metal pipes and plastic pipes.
With the options in the menu, one flow meter can measure both metal and plastic pipes.
Compatible pipe materials:
◆ Metal pipes: copper, iron, stainless steel
◆ Resin pipes: PVC, others
Pipe Diameter Range
For small-diameter pipes below DN40, the measurement data of other devices is not accurate, and this device is usually used for measurement.
Compatible pipe sizes:
◆ DN10-DN63
◆ For For DN3~DN10, or above DN65, please contact the manufacturer for confirmation.
